立式儲氣桶 product-7-1
Vertical storage barrels
說明:
- 出入口徑及位置可依客戶需求更改
- 本公司筒外漆色為工會#94號灰色
- 依勞檢規範φ1000mm以下不做人孔
- 依CNS標準製作，附工檢證

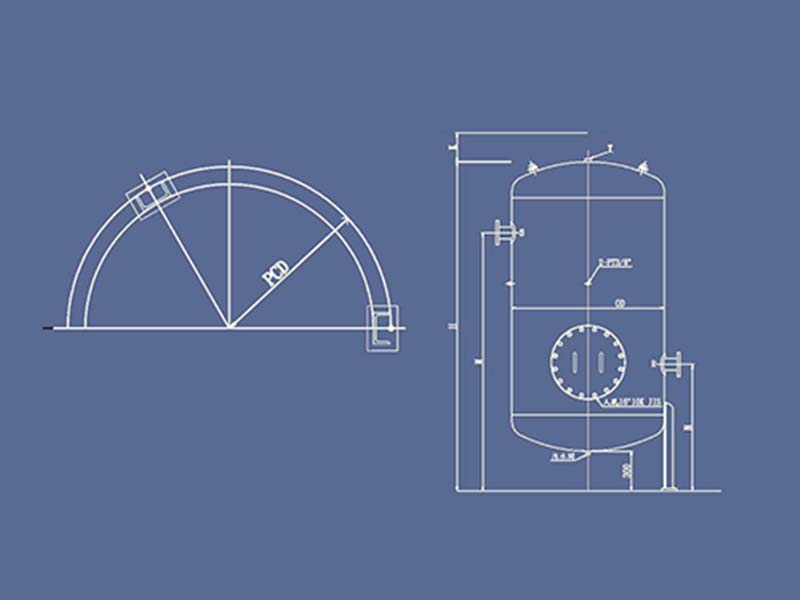

| Voiume 容量 |
OD 直徑 |
H 總高 |
K 安全閥高度 |
M 出口高度 |
N 入口高度 |
R 入口口徑 |
S 出口口徑 |
T 安全閥 |
PCD | N. W.(Kg) 重量 |
| 70 | 318 | 1348 | 120 | 1130 | 730 | 1/2" | 1/2" | 1/2" | 300 | 42.8 |
| 105 | 356 | 1448 | 120 | 1250 | 570 | 1/2" | 1/2" | 1/2" | 300 | 51.2 |
| 155 | 392 | 1734 | 120 | 1450 | 730 | 1/2" | 1/2" | 1/2" | 400 | 66.8 |
| 200 | 490 | 1316 | 120 | 1240 | 790 | 1" | 1" | 1/2" | 360 | 76.2 |
| 250 | 490 | 1616 | 120 | 1510 | 840 | 1" | 1" | 1" | 360 | 94.6 |
| 304 | 490 | 1921 | 120 | 1730 | 1150 | 1" | 1" | 1" | 360 | 110.8 |
| 360 | 580 | 1496 | 200 | 1460 | 880 | 2" | 2" | 1 1/4" | 450 | 150.6 |
| 430 | 580 | 2077 | 200 | 1755 | 870 | 2" | 2" | 1 1/4" | 450 | 176.8 |
| 580 | 720 | 1842 | 200 | 1560 | 880 | 2" | 2" | 1 1/4" | 530 | 204.4 |
| 660 | 760 | 1870 | 200 | 1580 | 880 | 2" | 2" | 1 1/4" | 530 | 217 |
| 700 | 720 | 2147 | 200 | 1770 | 890 | 2" | 2" | 1 1/4" | 530 | 237.4 |
| 1000 | 866 | 2209 | 200 | 1830 | 1140 | 2" | 2" | 1 1/4" | 640 | 400.0 |
| 1260 | 975 | 2271 | 200 | 1850 | 1170 | 2" | 2" | 1 1/4" | 720 | 449 |
| 1500 | 975 | 2546 | 200 | 2100 | 1170 | 2" | 2" | 1 1/4" | 720 | 497.2 |
| 2000 | 990 | 3032 | 220 | 2080 | 1155 | 2" | 2" | 1 1/2" | 720 | 578.6 |
| 2280 | 1160 | 2450 | 220 | 1960 | 960 | 3" | 3" | 1 1/2" | 1280 | 790 |
| 2500 | 1160 | 2800 | 220 | 1960 | 960 | 3" | 3" | 1 1/2" | 1280 | 950 |
| 3000 | 1160 | 3240 | 220 | 1960 | 960 | 3" | 3" | 1 1/2" | 1280 | 1000 |
| 4000 | 1400 | 2900 | 220 | 1870 | 1050 | 3" | 3" | 1 1/2" | 1700 | 1420 |
| 5000 | 1500 | 3380 | 250 | 2350 | 1050 | 4" | 4" | 2" | 1700 | 1660 |
| 6000 | 1600 | 3420 | 250 | 2350 | 1050 | 4" | 4" | 2" | 1960 | 1870 |
| 7000 | 1800 | 3070 | 250 | 2300 | 1500 | 5" | 5" | 2" | 1960 | 2340 |
| 8000 | 1800 | 3510 | 250 | 2300 | 1500 | 5" | 5" | 2" | 2100 | 2630 |
| 10000 | 1940 | 3050 | 400 | 2300 | 1520 | 6" | 6" | 2"✕2 | 2100 | 3200 |
| 12000 | 1940 | 4350 | 400 | 2500 | 1520 | 6" | 6" | 2"✕2 | 2100 | 4380 |
| 15000 | 1940 | 6000 | 400 | 2300 | 1520 | 6" | 6" | 2"✕2 | 2760 | 4800 |
| 20000 | 2580 | 4450 | 400 | 3000 | 1500 | 8" | 8" | 2"✕2 | 2760 | 4200 |
| 30000 | 2580 | 6280 | 400 | 3000 | 1500 | 8" | 8" | 4"✕2 | 2760 | 5500 |
| 40000 | 2580 | 8620 | 400 | 3000 | 1500 | 10" | 10" | 4"✕2 | 3050 | 7650 |
| 50000 | 2580 | 10380 | 400 | 3000 | 1500 | 10" | 10" | 4"✕2 | 3200 | 9800 |
